FINE FILTER (Microvee)
We have differentiated ourselves in the market as a reliable company that manufactures and provides Microvee Filters.
These filters are made from prime-quality aluminum acquired from leading suppliers in the market.
The media used in these filters are HDPE or non-woven high-temperature fabrics.
We provide these filters are in great demand in pharmaceutical and industrial sectors for regaining a dust-free atmosphere.
We provide these Microvee Filters at market-leading prices to customers.
Features:
- Easy assembly
- Synthetic non woven media is fire
retardant and resistance to moisture, fungi, and bacteria.
- Cleanable and washable
- Low initial pressure drop
- High dust holding capacity
- Better performance with optimum
cost
Specifications:-
- Type : Flange or Box
- Frame : Galvanised
steel/CRCA Powder Coated/Aluminum Anodized/SS304
- Separator :
Aluminium/GI/SS
- Filter Media : Synthetic
Non Woven /HDPE/Glass Fibre
- Media Support : AL/GI/SS
- Gasket : Sponge/Foam/Felt
- Sealed : Epoxy /Foam
- BS EN 779 Class : F5, F6,
F7, F8, F9
- Particulate Efficiency :
3-15 micron & Average Arrestance 90 to 99%
- Eurovent Class : EU-5,
EU-6, EU-7, EU-8, EU-9

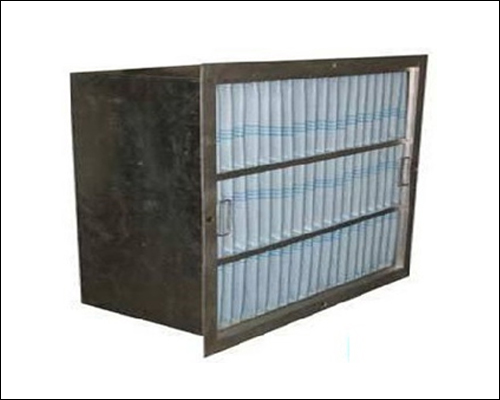

Fine Filter (Microvee)
We have earned for ourselves an Industry's reputation to be the world's leading manufacturer and exporter of Microvee Filter.
These filters are specifically designed to catch the smaller dust particles up to 3 microns in diameter.
It is used as a subsequent filter that is available in aluminium, mild steel, stainless steel, and galvanized iron constructions.
Depending upon the specific needs of the air handling application, we make available this Microvee Filter in various specifications.
HEPA FILTER Manufacturers
We have been playing a lead role in manufacturing and supplying Industrial HEPA filters.
This filter is used in the cement, rubber, and sugar industries for air-cooling applications.
At our sophisticated production unit, we manufacture this filter using the best quality mild steel and aluminum.
This Industrial HEPA Filter is highly demanded among clients and is available in different specifications.

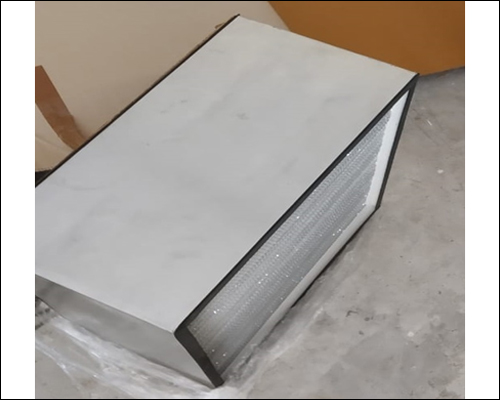

Hepa Filters
Hepa Filters is manufactured using the best possible technology and quality raw material, ensuring high efficiency and longer durability.
Hepa Filters are designed for air intake and extract systems of critical applications.
Hepa Filters are widely used in the FMCG industry, Pharmaceutical industry, clean room, Etc.
Hepa filtes are made by H&V company USA makes sub micronic glass fibre media.
Features:-
- Direction of flow flange to
cassette
- Wide range of standard sizes
- Longer operating life
- Rugged Construction
- Non Washable
Specifications:-
- Type : Flange or Box
- Frame : Galvanised
steel/CRCA Powder Coated/Aluminium Anodized/SS304
- Separator : Aluminium
- Filter Media : Sub
micronic glass fiber media
- Gasket : Neoprene rubber
gasket
- Sealed : Epoxy Sealed
- BS EN 779 Class :
H12,H13,H14
- Particulate Efficiency :
0.3micron & Average Arrestance 99.97%
- Eurovent Class :
EU-12,EU-13
Part No. | Dimensions in
MM | Rated Capacity M3/hr(CMH) |
SP-305A | 610x610x150mm |
1000 |
SP-306A | 610x915x150mm |
1500 |
SP-307A | 610x610x300mm |
1900 |
SP-308A | 610x1220x150mm |
2000 |
Applications:-
- Final Filtration in Clean room
- Biological lab Industries air
cooling unit
- Aeronautical industries cooling
system
- Pharmaceuticals Industry AHU
system
- Hospital AHU system
- Textile Industry air washer unit
- Mall cooling system
- Restaurant exhaust system
