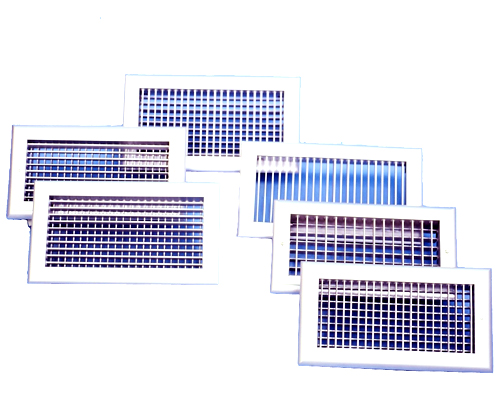

Double Deflection grilles are suitable for
well,ceiling and duct applications.Grilles vanes in double deflection are
individually adjustable.Grilles can also be supplied with non-standard
frames/boarders as per the customer requirements.
Fixings:-
Countersunk screw holes through flange Concealed
finings - see optional extras
Technical Data:-
All single and double deflection blades are fitted
through nylon bearings, which ensure that the blades remain firm once set in
position and also removes the possibility of noise created at higher
velocity through the grille. - Sizing monogram is opposite
Packaging:-
Each grille is individually wrapped to ensure the
product reaches you in perfect condition.
Optional Extras:-
Non standard sizes available on request Painting to
any BS or RAL color of your choice .FX/SD - Fixed blade (45° single
reflection), single deflectionCF - Concealed spring fixings.
Features
- The blades are fixed by wire and
adjustable from 0-180 degree,giving required controllable airflow
direction.
- Choice of Vertical or Horizontal
front blades fitted to customers' requirements.
- Anodized or powder coated white ,
colour RAL 9010, 9016, other colours on request.
- Frame is curved.
- Fixing with SFR or visible screws
mounting.
Material Used In
Manufacturing
Extruded Aluminium Sections/M.S. Sheets.
Finishes
- EPROXY POLYESTER POWDER
COATED(Broken off White/Pure White/Ivory)
- Natural Anodised
- Other powder coating finishes
available on request.
- Border and blades are anodized,
aluminum
- Painted Finish- to any RAL or BS
color.
