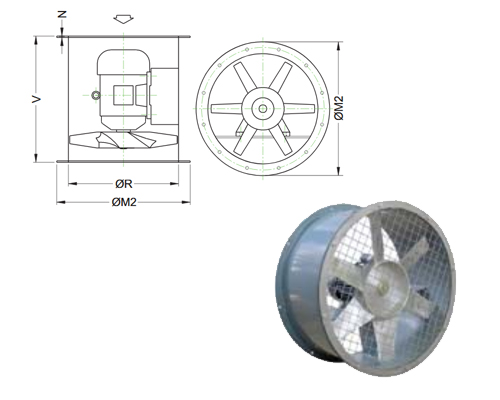

AIRMAKE - Axial Flow Fan are used for providing general ventilation, fume exhaust and removal of hot spots and can be and as roof extractor & bifurcated fan.

TYPE

General Ventilation Purpose.
Fire rated application & smoke exhaust

DUTIES

AIRMAKE -Axial flow-fans are specially manufactured for all applications and mounting positions in case sizes 500 to 1600 mm diameter. However small sizes fan from 300 to 450 dia can also be available on request

IMPELLER

AIRMAKE -impellers, hubs and blades are made of die cast aluminium alloy, the aerodynamical profile guarantees high efficiency and low noise. The hub is fitted with taper bush assembly for easy fitting on motor and is easy in maintenance. The blades are with adjustable pitch angle to optimise the dutypoint.

DRIVING ARRANGEMENTS

There are two types of drives – The direct drive arrangement or V – Belt drive arrangement. We can provide coupling drive arrangement on request.

CASING

The Casing is fabricated from mild steel sheets & plates and fitted with Flanges on both the ends. Fans are available in following mounting arrangements.

APPLICATIONS

General Ventilation
Fume Exhaust
Removal hot spots
As Roof Extractor
As Bifurcated Fan
Basement Ventilation
Kitchen Exhaust
Parking Ventilation
Tunnel Ventilation
Generator Ventilation
Air Conditioning
Humidification
In line applications
Man cooler

MOTOR
The standard A.C motors are totally enclosed fan cooled (TEFC), squirrel cage induction type suitable for ambient temperature upto 40° C, Flame proofs, vapour tight and other motors like class H and high temperature motors can be supplied on request.
